LUB NEEJ-21

Cov khoom

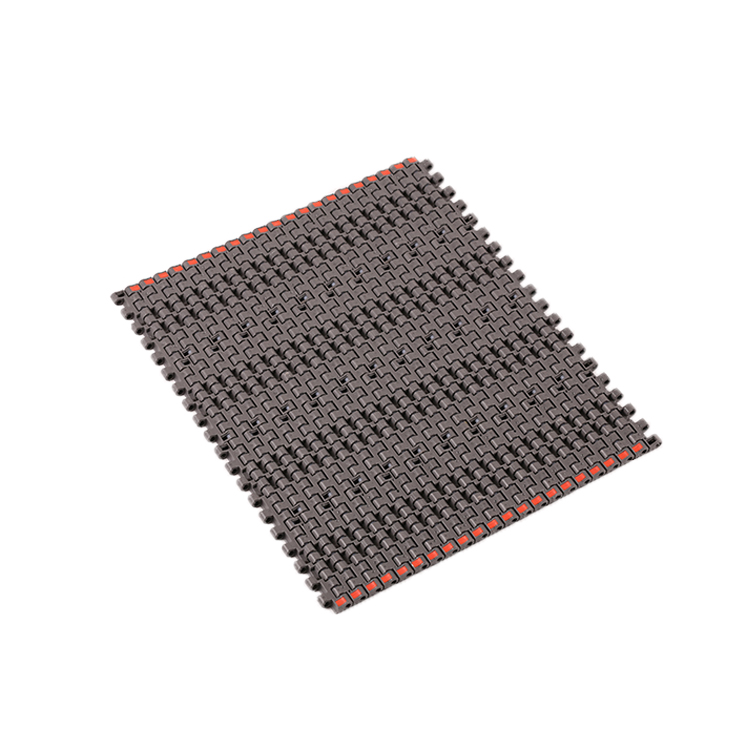

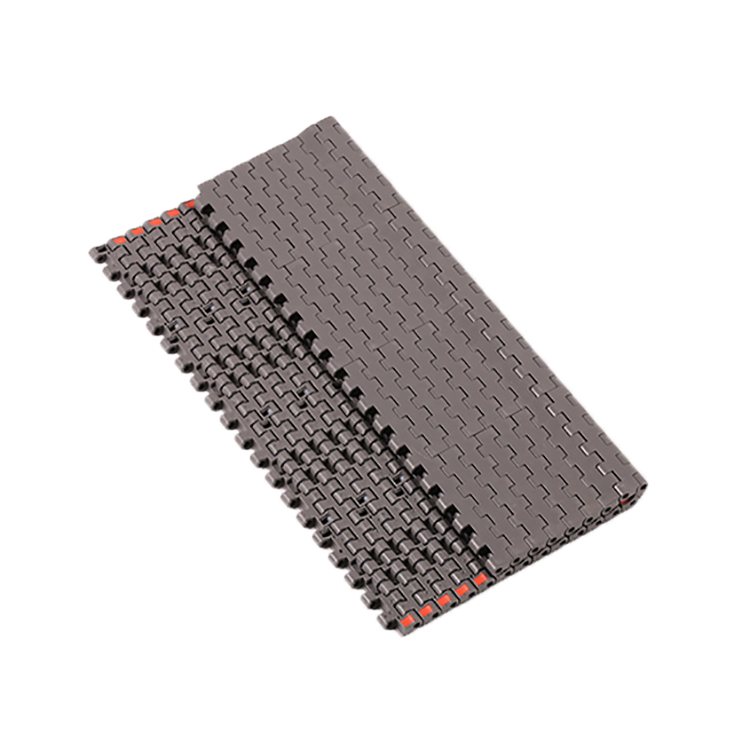

2120 Flat Top Yas Modular Conveyor Siv

Lus piav qhia luv luv:

2120 flat top modular yas conveyor siv siv rau cov nqaij, nqaij qaib, nqaij nruab deg, txiv hmab txiv ntoo thiab lwm yam kev thauj mus los, tuaj yeem ntsia tau rau ntawm txoj kab dav dav ntawm 85mm ntau txoj kab conveyor.

Product Detail

Khoom cim npe

Parameter

kev 4

Modular hom

21 20 Flat Top

StandaQhov dav (mm)

85 170 255 340 425 510 595 680 765 850 85N

(N, n yuav nce raws li cov lej sib npaug;

vim cov khoom sib txawv shrinkage, Qhov tseeb yuav qis dua tus qauv dav)

Nntawm tus qauv dav

85 * N + 8.4 *n

Belt Khoom siv

POM/PP

Pin Khoom

POM/PP/PA6

Phauv kab

5mm ib

Work Load

PPIB: 15000 pp

Kub

POM: -30C° ~ 90C° PP: +1C° ~ 90C°

Open cheeb tsam

0%

RTxhuas Radius (mm)

10

BQhov hnyav (kg /)

9

2120 Machined Sprockets

kev 5

Machined Sprockets

Cov hniav

Pitch qhov siab (mm)

Ontawm Diameter

Qhov Loj

Lwm Hom

mm

Ntiv

mm

Inch

mm

Muaj nyob ntawm kev thov

Los ntawm Machined

1-1273-14 T

14

56.90 ib

2.24

57.06 ib

2.25

20 2530 ib

1-1273-16 T

16

65.10 Nws

2.56 ib

65.20 Nws

2.57 ib

20 2530 ib

1-1273-20 T

20

81.19 ib

3.19 ib

81.20 Nws

3.19 ib

20 25 30 35 ib

Daim ntawv thov

1. Zaub mov

2. Haus dej

3. Haus luam yeeb

4.Caab

5. Auto qhov chaw

6. Xa ntawv

7.Auto

8. Roj teeb

9. Warehouing

10.Lwm kev lag luam

Qhov zoo

1.Smooth, kaw saum npoo

2. Yooj yim los ntxuav

3. Kev nyab xeeb tsim

4.Qhov zoo

5.Kev pab cuam tom qab muag zoo

6. Kev ua haujlwm ruaj khov

7. Tsawg tus nqi tu

8.Kev siv dav dav

9.tuaj yeem tiv taus kev sib txhuam coefficient tsawg,

10.High impact resistance, tensile lub zog thiab lwm yam cuam tshuam tam sim

Lub cev thiab tshuaj muaj zog

Acid thiab alkali tsis kam (PP):

2120 flat top modular yas conveyor siv siv pp khoom nyob rau hauv acidic ib puag ncig thiab alkaline ib puag ncig muaj peev xwm thauj tau zoo dua;

Antistatic:

Antistatic cov khoom uas nws tus nqi kuj tsawg dua 10E11Ω yog ​​cov khoom antistatic. Cov khoom zoo antistatic uas nws tus nqi tsis kam yog 10E6 txog 10E9Ω yog ​​cov khoom siv hluav taws xob thiab tuaj yeem tso hluav taws xob zoo li qub vim lawv cov nqi qis. Cov khoom uas muaj kev tiv thaiv ntau dua 10E12Ω yog ​​cov khoom siv insulated, uas yooj yim los tsim hluav taws xob zoo li qub thiab tsis tuaj yeem tso tawm los ntawm lawv tus kheej.

Hnav tsis kam:

Hnav tsis kam yog hais txog lub peev xwm ntawm cov khoom siv los tiv thaiv kev siv tshuab. Attrition ib chav tsev nyob rau ib lub sij hawm ntawm ib tug tej yam sib tsoo ceev nyob rau hauv ib tug tej yam load;

Corrosion kuj:

Lub peev xwm ntawm cov khoom siv hlau los tiv thaiv corrosive ntawm cov xov xwm ib puag ncig yog hu ua corrosion resistance.
