LUB NEEJ-21

Cov khoom

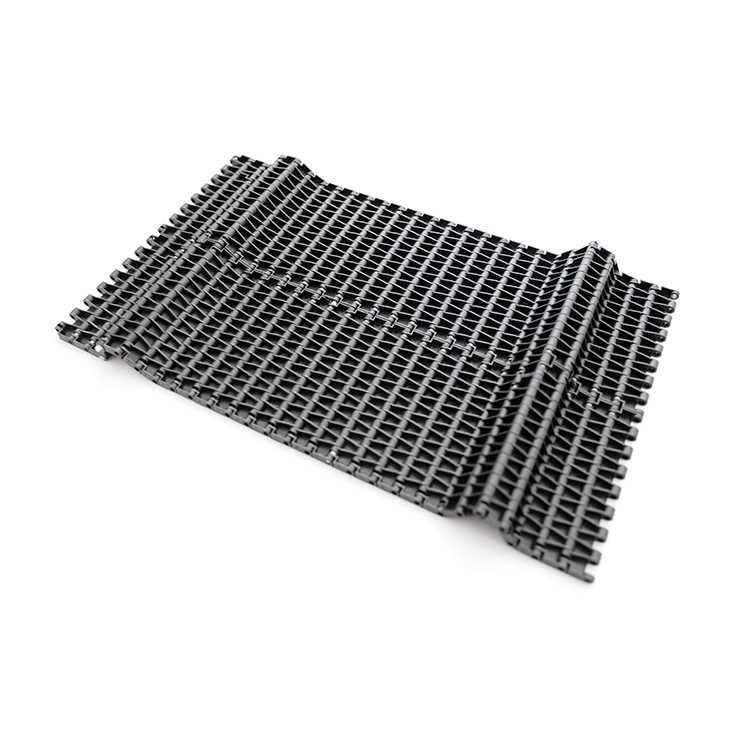

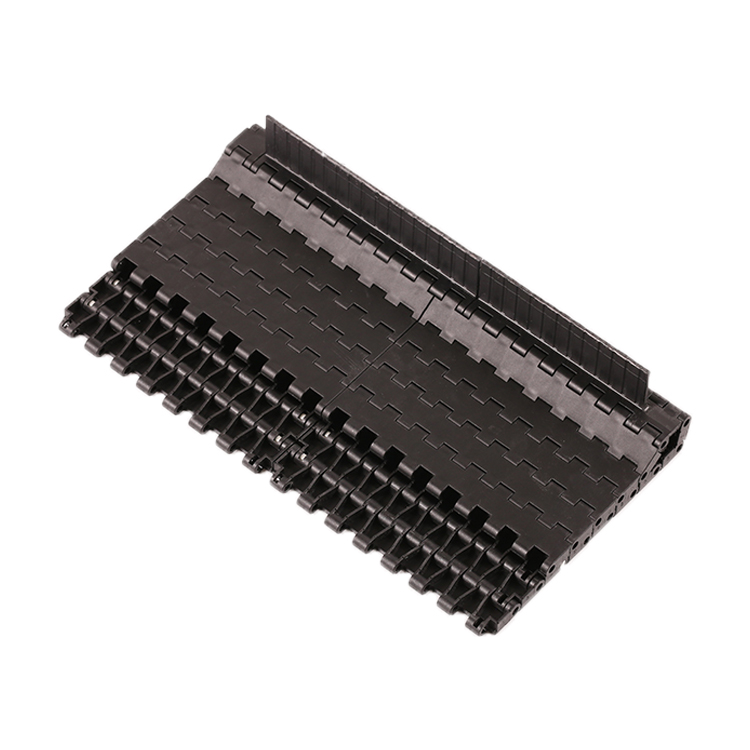

5935 Modular Yas Conveyor Siv Nrog Dav Hlau

Lus piav qhia luv luv:

5935 modular yas conveyor txoj siv nrog lub davhlau daws qhov teeb meem uas cov siv conveyor siv
thiab cov qauv siv conveyor tsis tuaj yeem yog lub kaum sab xis conveying

Product Detail

Khoom cim npe

Parameter

kev 4

Modular Hom

5935 ua

Txheem dav (mm)

76.2 152.4 228.6 304.8 381 457.2 833.4 609.6 685.8 762 76.2 * NPE Nco tseg: N·n yuav nce raws li qhov sib npaug: vim yog cov khoom sib txawv shrinkage, qhov tseeb yuav qis dua tus qauv dav

Tsis Standard Dav (mm)

76.2 * N + 19 * n

Pitch (mm)

19.05 Nws

Khoom siv dav hlau

POM/PP

Davhlau Qhov siab

20 25 30 35 40 50 ib

5935 Machined Sprockets

kev 5
Machined Sprockets Cov hniav

Pitch qhov siab (mm)

Sab nraud txoj kab uas hla

Qhov Loj

Lwm Hom

mm Ntiv mm Ntiv mm

Muaj nyob ntawm kev thov

Los ntawm Machined

1-1901A/1901B-12

12

73.6 ib

2.87 ib

75.7 ua 2.98 ib 20 30 35 40 ib
1-1901A/1901B-16

16

97.6 ib

3.84 ib

99.9 ua 3.93 ib 20 30 35 40 ib
1-1901A/1901B-18

18

109.7 ib

4.31 ib

112 4.40 Nws 20 30 35 40 ib

Daim ntawv thov

1.Spare thiab accessories

2.Injection molding system ntim tshuab

3. Lub raj mis cap conveying

4.Lwm kev lag luam

5935-1 ZPO

Qhov zoo

DSC_2859

1. Kev siv dav dav

2.Qhov chaw me me nyob

3. Tsawg tus nqi tu, loj ntim conveying

4. Kev ua haujlwm yooj yim

5. Kev ua haujlwm siab

6.Tau qhov teeb meem uas cov siv conveyor siv thiab cov qauv siv conveyor tsis tuaj yeem ua taudipkaum conveying

7.Yuav ua tau ntsug dav hlau, kab rov tav dav hlau, me ntsis deflected thiab ntau lub kaum sab xis conveying

8. Yooj yim los ntxuav

9.Customization muaj

10.Nroj tsuag ncaj qha muag
