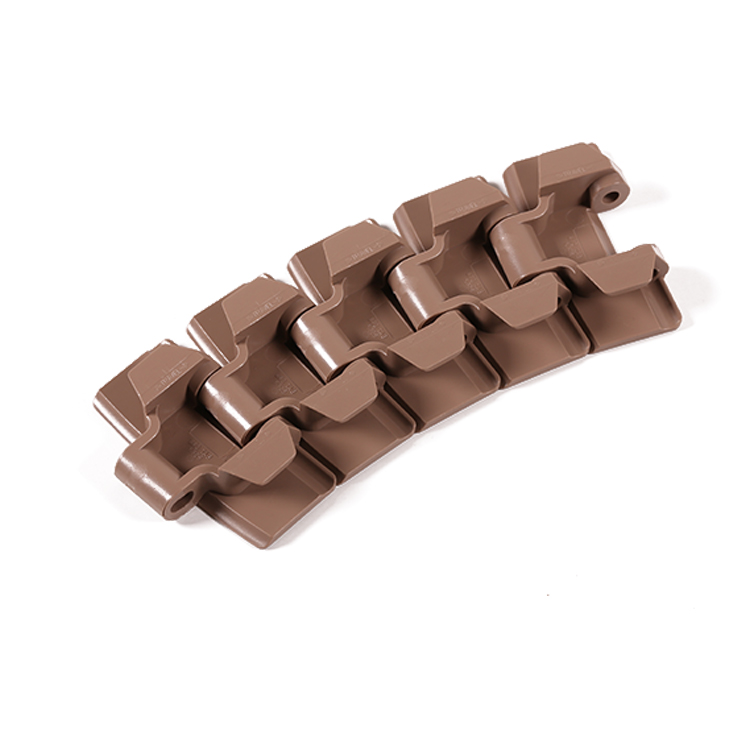

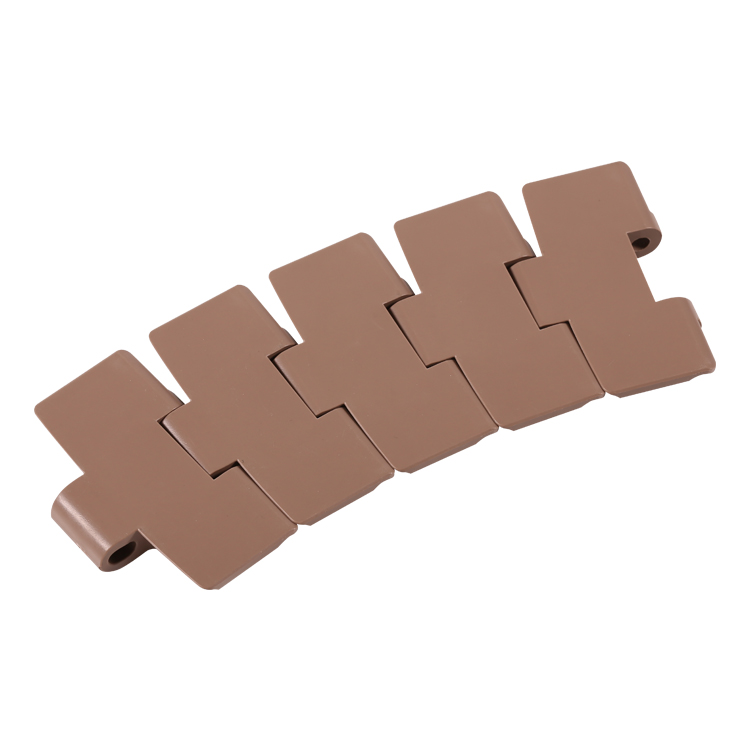

880TAB Sab Flexing Top Chains

Lus piav qhia luv luv:

Feem ntau yog siv rau txhua yam kev lag luam zaub mov, xws li dej haus, lub raj mis, tuaj yeem thiab lwm yam khoom siv.
  • Qhov deb tshaj plaws: 9M
  • Max.speed:Lubricant 90M / min; Dryness 60M / min
  • Ua haujlwm load:2100 Nr
  • Suab:38.1mm ib
  • Pin khoom:austenitic stainless hlau
  • Cov khoom siv phaj:POM acetal
  • Kub:-40-90 ℃
  • Ntim:10 ko taw = 3.048 M / thawv 26pcs / M
  • Product Detail

    Khoom cim npe

    SAVAVAV

    Parameter

    Chain Hom Phaj Dav Ua hauj lwm Load Sab
    Flex Radius
    Rov qab Flex Radius (min) Qhov hnyav
    mm nti N (21 ℃) mm mm Kg / m
    880 TAB-K325 82.6 ib 3.25 2100 500 40 0.90 ib
    880 TAB-K450 114.3 ib 4.5 2100 610 1.04 ib
    bqwf qw

    880 Series machined tsav Sprockets

    Machined Sprockets Cov hniav PD (mm) OD (mm) D (mm)
    1-880-10-20 : kuv 10 123.3 ib 4.81 ib 20 25 30 35 40 ib
    1-880-11-20 ib 11 135.2 ib 5.31 ib 20 25 30 35 40 ib
    1-880-12-20 ib 12 147.2 ib 5.79 ib 20 25 30 35 40 ib

    Haum rau ntau yam ntawm ib puag ncig thauj kab lub cev, qhov kub siab tshaj plaws tuaj yeem ncav cuag 120 ℃.
    Nws muaj cov nyhuv zoo hnav-tiv taus thiab tsim nyog rau dais load rau lub sijhawm ntev. Kev vibration absorption thiab suab nrov txo thaum ua haujlwm. Lwm cov qauv tuaj yeem ua raws.

    Qhov zoo

    Nws yog qhov tsim nyog rau ib qho channel lossis ntau lub channel tig conveying ntawm lub raj mis, cov kaus poom, lub thawv ntawv thiab lwm yam khoom.
    Hook ko taw txwv, ua haujlwm du.
    Conveyor kab template hom buckle los ua ke, yooj yim rau assemble.
