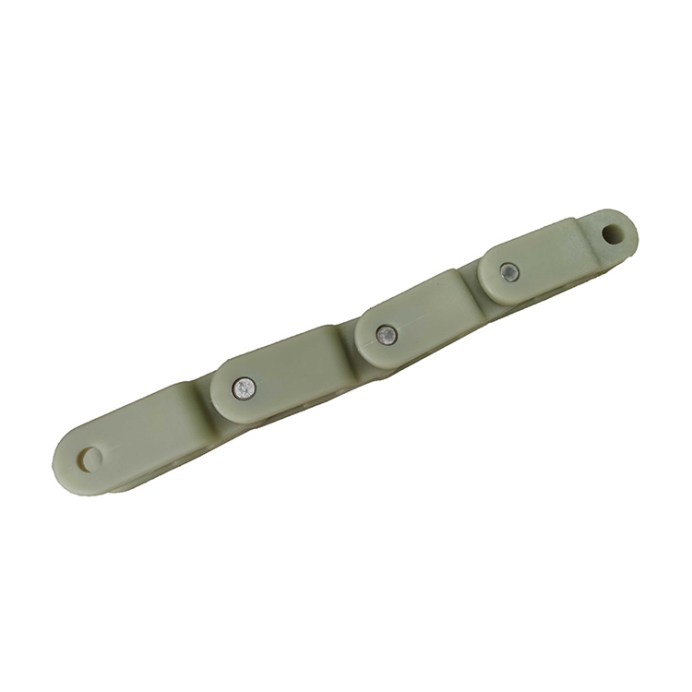

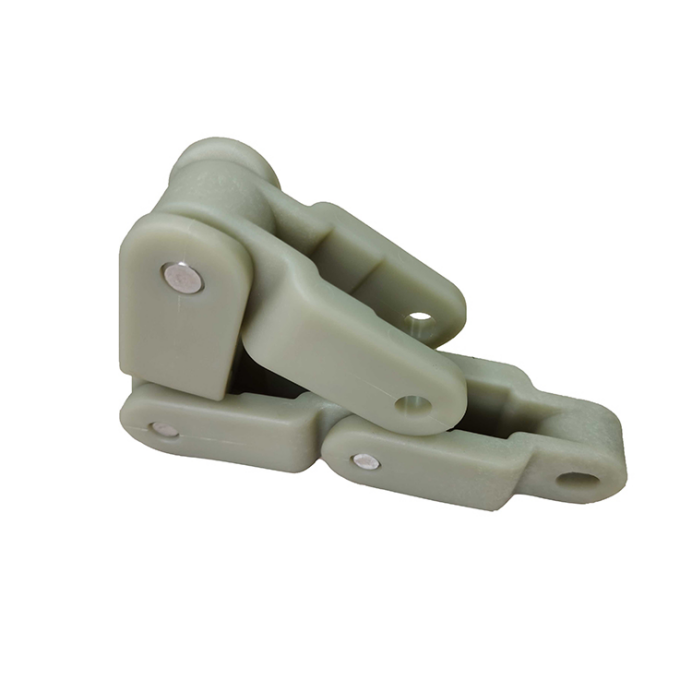

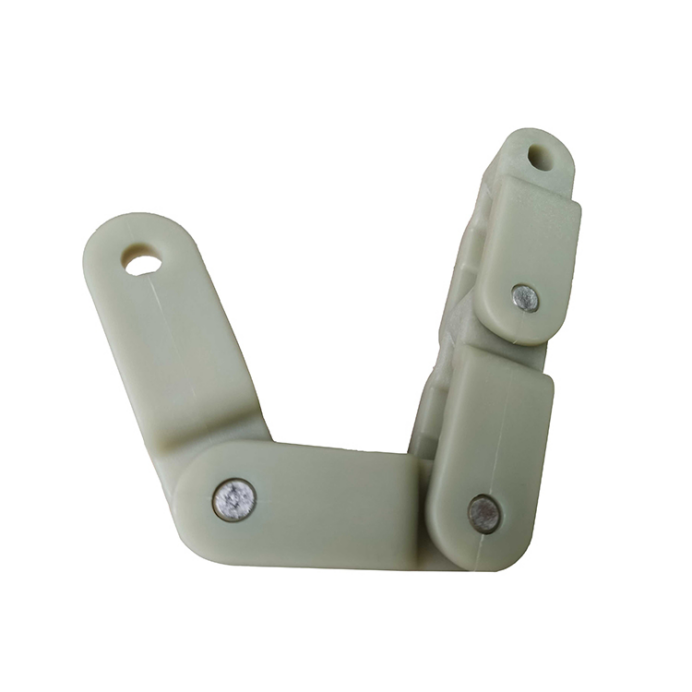

CC600/CC600TAB Cov Khoom Siv Conveyor
Cov Qauv
| Hom saw | Qhov Dav ntawm Phaj | Rov qab Radius | Lub vojvoog | Kev Thauj Khoom Ua Haujlwm | Qhov hnyav | |||
| Cc600/600TAB cov ntaub ntawv saw | mm | nti | mm | nti | mm | nti | N | 2.13kg |
| 42 | 1.65 | 75 | 2.95 | 600 | 23.6 | 3000 | ||
CC600/600TAB/2600 series tshuab sprockets
| Cov Sprockets Uas Tau Ua Los Ntawm Tshuab | Cov hniav | Qhov Txoj Kab uas hla (PD) | Sab Nraud Txoj Kab uas hla (OD) | Qhov Chaw Nruab Nrab (d) | ||
| mm | nti | mm | nti | mm | ||
| 1-CC600-10-20 | 10 | 205.5 | 8.09 | 215.8 | 8.49 | 25 30 35 40 |
| 1-CC600-11-20 | 11 | 225.39 | 8.87 | 233.8 | 9.20 | 25 30 35 40 |
| 1-CC600-12-20 | 12 | 245.35 | 9.66 | 253.7 | 9.99 | 25 30 35 40 |
Cov txiaj ntsig
Haum rau kev xa cov pallet, lub thawv thav duab thiab lwm yam khoom, nws yooj ywm rau ntau qhov kev taw qhia.
Cov kab conveyor yooj yim los ntxuav.
Kev sib txuas ntawm tus pin hinged, tuaj yeem ua rau kom nce lossis txo qhov sib koom ua ke.
Sab ntawm cov saw hlau conveyor ntawm TAB series yog inclined plane, uas yuav tsis tawm los thaum tig nrog txoj kev. Hook ko taw txwv, ua haujlwm du.
Qhov txuas ntawm tus pin hinged, tuaj yeem ua rau kom nce lossis txo qhov sib koom ua ke.
Haum rau kev xa khoom hauv ntau qhov chaw ib puag ncig, qhov kub siab tshaj plaws tuaj yeem ncav cuag 120 degrees.
Zoo hnav-tiv taus, tsim rau lub sijhawm ntev thauj khoom, kev nqus kev co thiab txo suab nrov thaum lub sijhawm ua haujlwm.
Ntim Khoom
Sab hauv pob: ntim rau hauv lub thawv ntawv
Tawm ntim khoom: Cov thawv ntawv lossis ntoo pallet
Haum rau kev xa khoom hauv hiav txwv thiab hauv av
Raws li cov neeg siv khoom thov
