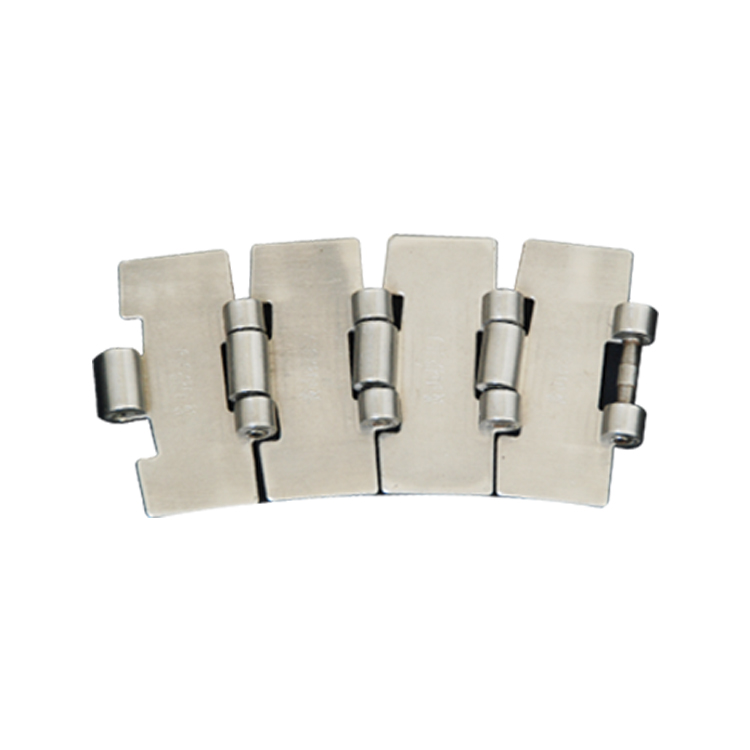

Conveyor Stainless Hlau Chains -SS881M Sab Flexing Chains

Lus piav qhia luv luv:

stainless hlau sab flexing chains, nrog suab ntawm 38.1mm, thiab txawv phaj dav.
SS881M tuaj yeem siv dav hauv txhua yam khoom siv ntawm cov iav thiab cov khoom hnyav xws li hlau. Tshwj xeeb yog siv rau kev lag luam npias.

Xa email rau peb

Product Detail

Khoom cim npe

SS8157 Ib leeg ncaj saws

Chain Hom	Phaj Dav		Qhov kawg tensile zog		Ua haujlwm load (Max)		Radius (min)	Qhov hnyav
Chain Hom	mm	nti		420/430 ib(kuv kn)		420/430 hli	mm	Kg / m
Qauv TSIS MUAJ: SS881M-K325	82.6 ib	3.25		5.6		2	460	2.65 ib
Qauv TSIS MUAJ: SS881M-K450	114.3 ib	4.50 Nws		5.6		2	460	3.25
Qauv TSIS MUAJ: SS881M-K600	152.4 ib	6.00 Nws		5.6		2	600	4.10
Qauv TSIS MUAJ: SS881M-K750	190.5 ib	7.50 Nws		5.6		2	600	5.02 ib
Suab:38.1mm ib				Pin Dia (Max):6.35mm ib
Khoom siv:; ferritic stainless hlau (magnetic)Pin khoom:stainless hlau.
Qhov siab tshaj plaws conveyor ntev: 15meters.
Lub kaum sab xis lem lossis tig disks tuaj yeem xaiv rau kev thauj mus los nkhaus.
Ntim: 10 feet = 3.048 M / thawv 26pcs / m

Daim ntawv thov

Zoo tagnrho rau cov khoom noj

dej qab zib

breweries

iav fwj filling

wine kev lag luam

cov mis nyuj

cheese

npias ntau lawm

incline conveying

canning thiab tshuaj ntim khoom

Qhov zoo

Cov Chains no yogtus yam ntxwvlos ntawm kev ua haujlwm siabthauj khoom, heev-resistant rau hnav nyob rau hauv thiab incredibly tiaj tus thiab sleek conveying nto. Cov chains tuaj yeem siv tau rau hauv ntau qhov kev pab cuam thiab tsis yog nyob rau hauv Kev Lag Luam Dej Haus xwb.

Stainless hlau SS881 Sib Nqus Rooj Sab saum toj Chain, Sab Flexing Chains, SS881 MO Magnet Optimal, siab tensile lub zog, tsis muaj tabs los yog bevels ntawm cov chains - yooj yim tshem tawm los yog tu, haum rau conveying iav fwj, npias kev lag luam.
